B22 Lamp Cap Crimping Tool Punching Machine With Crimping Punching Tool

B22 Lamp Cap Crimping Tool Punching Machine With Crimping Punching Tool

Product name: lamp cap crimping tool

Product type: E27/B22(8pin/10pin/12pin)E14(8pin)E40(10pin)

Material: Die block steel+stainless pin

Specialty: The lamp machine surface plating color zinc, do not fade, do not rust, handle with rubber sleeve, manual type lamp locking device, the handle can rotate 360 degrees horizontal move, easy to use, simple, labor-saving, high efficiency, chosen by most manufacturers.

Product use:The utility model is mainly used for locking the lamp cap and the lamp cap plastic part. The utility model uses the steel needle to pierce the burr formed by the metal lamp cap, and a pinhole is arranged on the lamp cap to achieve the purpose of locking the lamp cap and the plastic part.

Weight:About 1.6kg

Operating instruction

1. Firstly, Fix the lamp cap crimping tool on the worktable by M8 bolt, and adjuste the working angle suitable.

2. Insert the lamp holder parts (metal head and plastic shell) into the Tool.

3. Rotate the handle to make the inner steel ball stagger to press out the steel needle, and press the metal lamp holder into the plastic parts to make it closely connected, take out the finished product and then rebound handle.

Material characteristic structure:

1. The metal shell is made of A3# carbon steel and be processed precisely.

2. The inner circle model using 60# high carbon steel processed after high frequency quenching.

3. The needle is made of imported wear resistant, high toughness steel (the needle will not broken).

4. Service life:15 thousand energy-saving lamps a day,using one and half year don’t have to renewal needle.

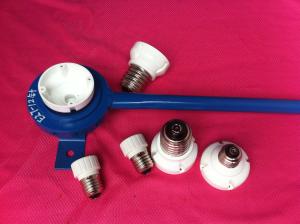

B22 Lamp Cap Crimping Tool Punching Machine With Crimping Punching Tool Images
